Comprehensive Whitepaper: Engineering High-Security Physical Perimeter Systems
Physical perimeter security represents the first line of defense for critical national infrastructure, military installations, hyperscale data centers, industrial automation facilities, and high-risk commercial assets. In an era where physical security threats overlap with complex operational risks, specifying the correct physical perimeter system requires rigorous analysis of structural engineering, metallurgical performance, intrusion delay metrics, and systemic integration with active electronic security systems.
As a global OEM/ODM manufacturer and direct factory supplier, our engineering focus centers on structural integrity, deterrence mechanics, long-term environmental endurance, and compliance with stringent international physical security standards such as ASTM F2781, PAS 68, and ISO 14120. This comprehensive whitepaper serves as an authoritative technical resource for security architects, procurement directors, project engineers, and risk managers evaluating high-security perimeter fence systems.
Information Gain Insight: The efficacy of a physical perimeter barrier is calculated not merely by its physical height, but by its "Delay Time Coefficient"—the quantifiable duration a barrier delays an intruder carrying specialized mechanical or power-driven intrusion tools. High-density 358 welded mesh systems provide up to 400% greater delay times compared to standard chain-link or open-picket systems.

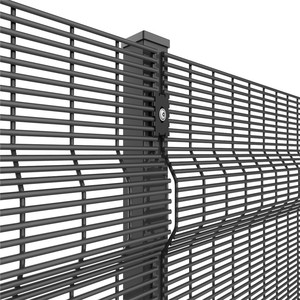

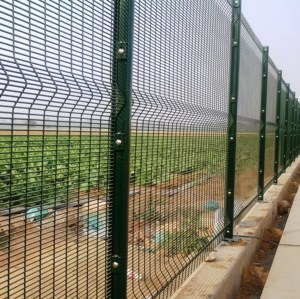

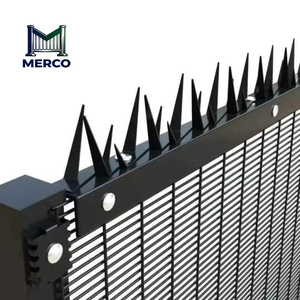

The Physics and Metallurgical Architecture of 358 Anti-Climb Mesh
The term "358" derives directly from the panel's imperial measurements: 3 inches (76.2mm) horizontal aperture, 0.5 inches (12.7mm) vertical aperture, and 8-gauge (4mm nominal) high-tensile steel wire. This exact structural geometry creates an almost impenetrable physical barrier that directly neutralizes the two primary modes of forced manual entry: climbing and cutting.
Anti-Climb Geometry
The narrow 12.7mm vertical slot prevents any handhold or foothold. Standard tactical boots, climbing footwear, and human fingers cannot penetrate the mesh, effectively rendering scaling attempts impossible without external climbing gear.
Anti-Cut Resistance
Conventional bolt-cutters require a minimum jaw opening of 15mm to grip and shear wire. The 12.7mm aperture physically blocks tool insertion, forcing intruders to rely on heavy-duty power saws, which trigger acoustic and seismic PIDS sensors instantly.
Optical Transparency
Despite its dense physical structure, 358 mesh offers a "Clear View" profile. It maintains optimal line-of-sight for CCTV, thermal cameras, and security personnel, eliminating visual blind spots along expansive perimeters.
From a metallurgical perspective, our factory utilizes high-grade cold-drawn carbon steel wire with a tensile strength ranging between 550 to 700 N/mm². Every cross-wire intersection is resistance-welded using computer-controlled multi-head robotic welding rigs. This ensures a uniform shear strength exceeding 75% of the wire's minimum tensile strength at every single weld joint, meeting ASTM A185 specifications for structural welded wire fabric.
Technical Comparison: Perimeter Barrier Performance Matrix
Selecting the appropriate perimeter system requires matching the physical threat spectrum against the technical attributes of available barrier designs. The matrix below details the engineering performance metrics across our main physical security systems:
| Barrier Type | Primary Application | Anti-Climb Rating | Tool Delay Time | Corrosion Resistance | Sensor Integration |
|---|---|---|---|---|---|
| 358 High-Security Mesh | Data Centers, Power Grids, Prisons | Extremely High (Pass) | > 15 Mins (Manual) | Hot-Dip Galvanized / Polyester Powder | PIDS, Fiber Optic, Microphonic Cable |
| Heavy Palisade Fencing | Rail Depots, Logistics Hubs, Utilities | High (D-Section / W-Section) | 8 - 12 Mins (Manual) | HDG to ISO 1461 Standards | Infrared Beams, Motion Sensors |
| Modular Machine Guarding | Robotics Cells, Automated Warehouses | N/A (Safety Isolation) | High (Impact Tested) | Powder Coated RAL Colors | Safety Interlocks, Light Curtains |

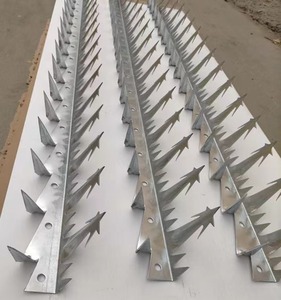

| Galvanized Wall Spikes | Perimeter Wall Tops, Substation Edges | Critical Deterrence | Instant Physical Denial | Heavy HDG / Stainless Steel | Visual Deterrence Alignment |
Future Sourcing & Procurement Trends in Perimeter Security
The global security landscape is undergoing a structural transition toward integrated, intelligent physical security ecosystems. Procurement officers and B2B buyers must evaluate current manufacturing investments against emerging technological trends to prevent asset obsolescence and minimize Total Cost of Ownership (TCO) over a 20-to-30-year lifecycle.
1. Convergence of Physical Fencing and Intrusion Detection Systems (PIDS)
Modern high-security perimeters no longer treat physical fences as passive barriers. The future of physical security lies in dynamic barrier systems. Factory-fabricated 358 mesh panels are now designed with pre-engineered channels for embedding fiber-optic strain sensors, microphonic vibration cables, and coaxial leaky-feeder detection systems. When an attempt is made to scale, cut, or impact the fence, localized sensor data is transmitted instantly to centralized AI-driven video analytics platforms, reducing false alarm rates while providing pinpoint intruder localization.
2. Sustainable Metallurgy and Low-Carbon Galvanization
Environmental sustainability is becoming a mandatory criterion in global procurement tenders. Forward-thinking suppliers are transitioning to Eco-Friendly Steel production methods. This includes utilizing electric arc furnace (EAF) steel with high recycled content and deploying closed-loop heavy-duty galvanization processes. Advanced Duplex Coatings—combining a thermal diffusion galvanized base with zero-VOC thermoplastic polyester powder coatings—extend system service life beyond 30 years even in harsh marine or highly corrosive C5-I industrial environments, drastically lowering lifecycle environmental impact.

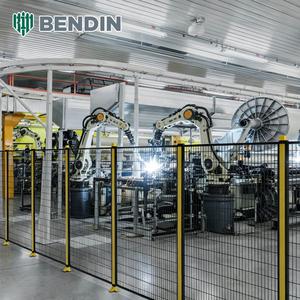

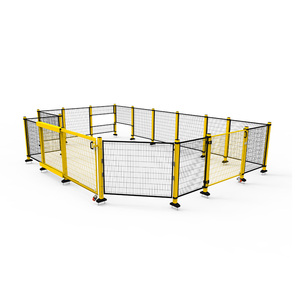

3. Modular Engineering for Industrial Robotics and Automation (ISO 14120)
As smart manufacturing and automated logistics hubs expand globally, internal perimeter protection has evolved rapidly. Robot perimeter safety fencing must comply with ISO 14120 and OSHA safety mandates. The trend is moving away from custom site-fabricated guards toward standardized modular framing systems featuring captive fasteners, rapid-release access doors, 3D BIM integration, and integrated safety interlocks. This modularity allows facility managers to reconfigure robot cells without discarding existing physical fence assets.
Factory Direct Advantage: Quality Assurance & Customization Capabilities
As a leading perimeter security manufacturer, our production philosophy is built upon complete vertical control over the manufacturing supply chain—from raw steel rod wire drawing and precision robotic mesh welding to advanced surface coating and structural fabrication.
ISO 9001:2015 Quality System
Every production batch undergoes strict quality control testing, including weld shear strength analysis, tensile strength verification, salt spray corrosion testing (ASTM B117), and powder coating adhesion tests.
3D Modeling & Custom BIM Support
We work directly with EPC contractors and security consultants, providing detailed 3D CAD modeling, BIM files, and structural load calculations to streamline project design and installation on site.
Turnkey OEM / ODM Solutions
From customized panel sizes, post configurations (Y-post, cranked post, flange base) to custom RAL color matching, we tailor complete perimeter security packages to your exact project specifications.
Frequently Asked Sourcing Questions (FAQ)
Below are authoritative answers to common engineering and procurement queries regarding perimeter security barriers, anti-climb fencing, and international shipping standards:
What makes 358 mesh fencing superior to standard chain-link fencing for high-security applications?
Standard chain-link fencing can be easily scaled using standard footwear and cut in seconds using simple hand tools. 358 anti-climb mesh features extremely tight 76.2mm x 12.7mm apertures that prevent finger/footholds and block bolt-cutter entry, providing substantially longer delay times, structural rigidity, and seamless integration with security sensors.
How does hot-dip galvanizing protect high-security perimeter fencing in coastal or high-humidity zones?
Hot-dip galvanizing (HDG) according to ISO 1461 creates a metallurgically bonded zinc-iron alloy coating over the steel wire. This layer acts as both a physical shield and a sacrificial anode. Even if the surface is scratched, the surrounding zinc corrodes preferentially, preventing red rust from undermining the structural strength of the panel.
Can your perimeter safety fence systems be customized for automated robotic production lines?
Yes. Our industrial safety fence line complies with ISO 14120 machine safety standards. We manufacture modular panels with customizable post heights, integrated wire management channels, access cutout doors, and mounting hardware for safety interlocks, safety light curtains, and emergency shut-off systems.
What factors determine the overall cost of a high-security perimeter fencing project?
Key cost determinants include total line perimeter length, panel height, wire diameter gauge, surface coating specification (HDG vs. Duplex Powder Coating), post foundation type (in-ground concrete vs. bolted flange), access gate automation, and integration of anti-climb toppings such as razor wire or wall spikes.
How are your perimeter fence products packaged for international container shipping?
All fence panels and posts are packed on heavy-duty steel or wooden pallets with protective cardboard corner guards, plastic wrapping, and high-tensile steel strapping. This prevents panel distortion, powder coating abrasion, or structural damage during transit and ocean container shipping.
Do you provide technical engineering assistance and CAD drawings for tender submissions?
Our in-house engineering team provides complete technical documentation for commercial tenders, including 2D layout drawings, 3D CAD modeling, material spec sheets, mill test certificates (MTC), and step-by-step installation guides.
